NHXMH is a halogen-free cable that can be fixed in dry and wet places, or laid in masonry and concrete or plaster, and cannot be used outdoors. NHXMH-J/O is especially suitable for places where good fire resistance is required, such as buildings with high density of people or high value property.
Application and description
NHXMH is a halogen-free cable that can be fixed in dry and wet places, or laid in masonry and concrete or
plaster, and cannot be used outdoors. NHXMH-J/O is especially suitable for places where good fire resistance
is required, such as buildings with high density of people or high value property.
Standards and certification
VDE 0250-214, VDE 0482-266-2-4, Test Standard C, IEC 60228; IEC 60332-3-22; IEC 60754-1; IEC 60754-2, IEC 61034

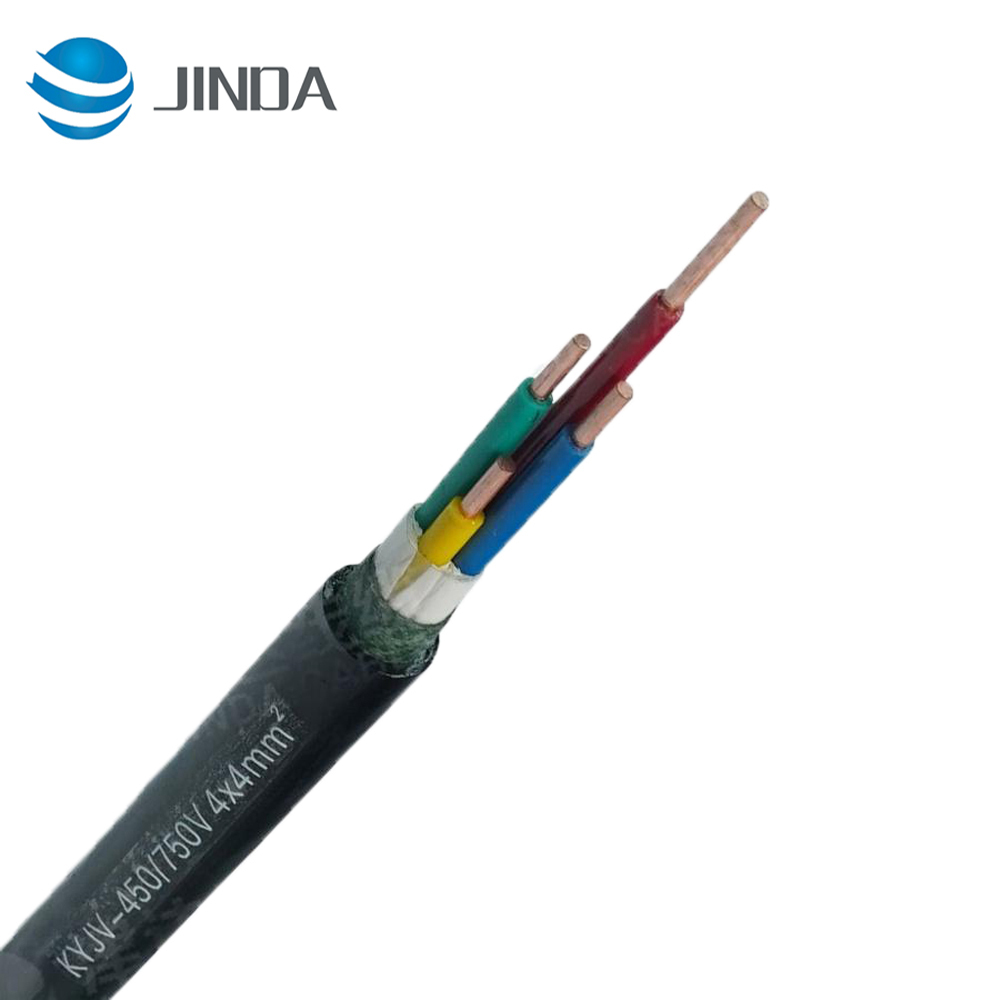

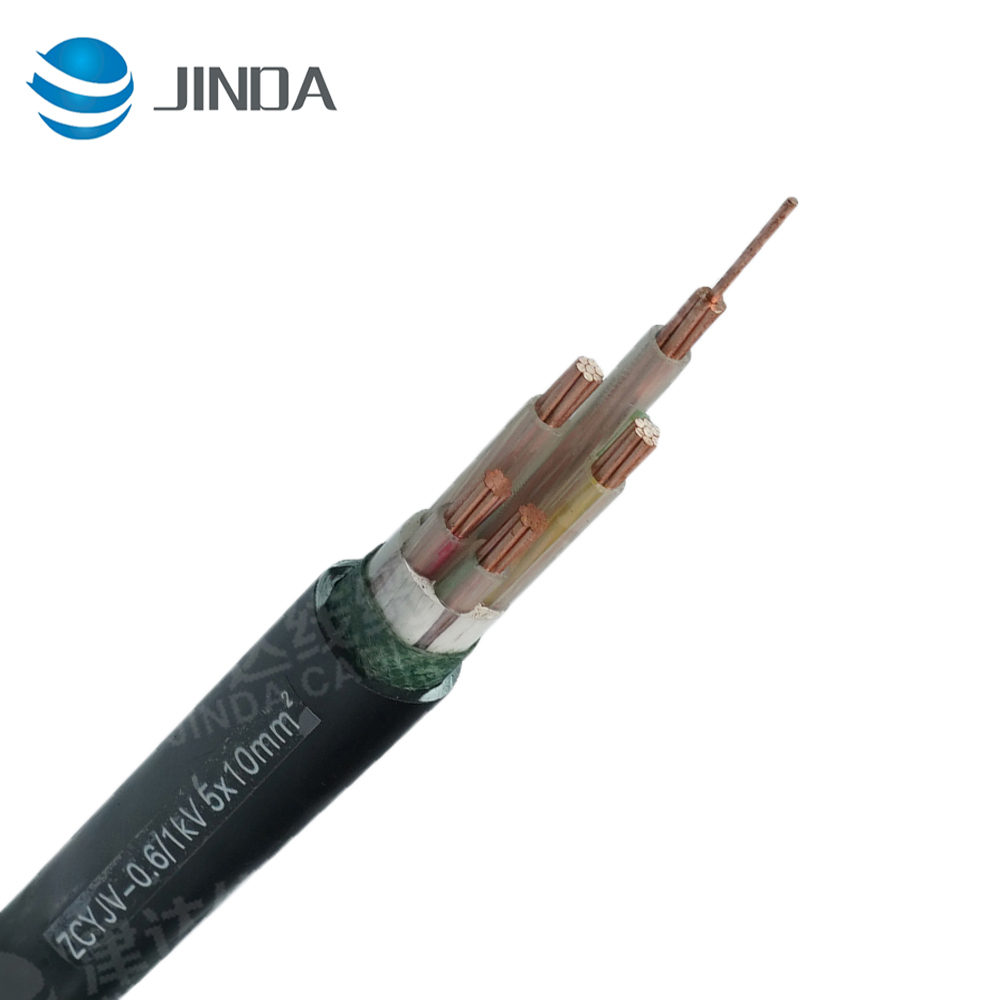

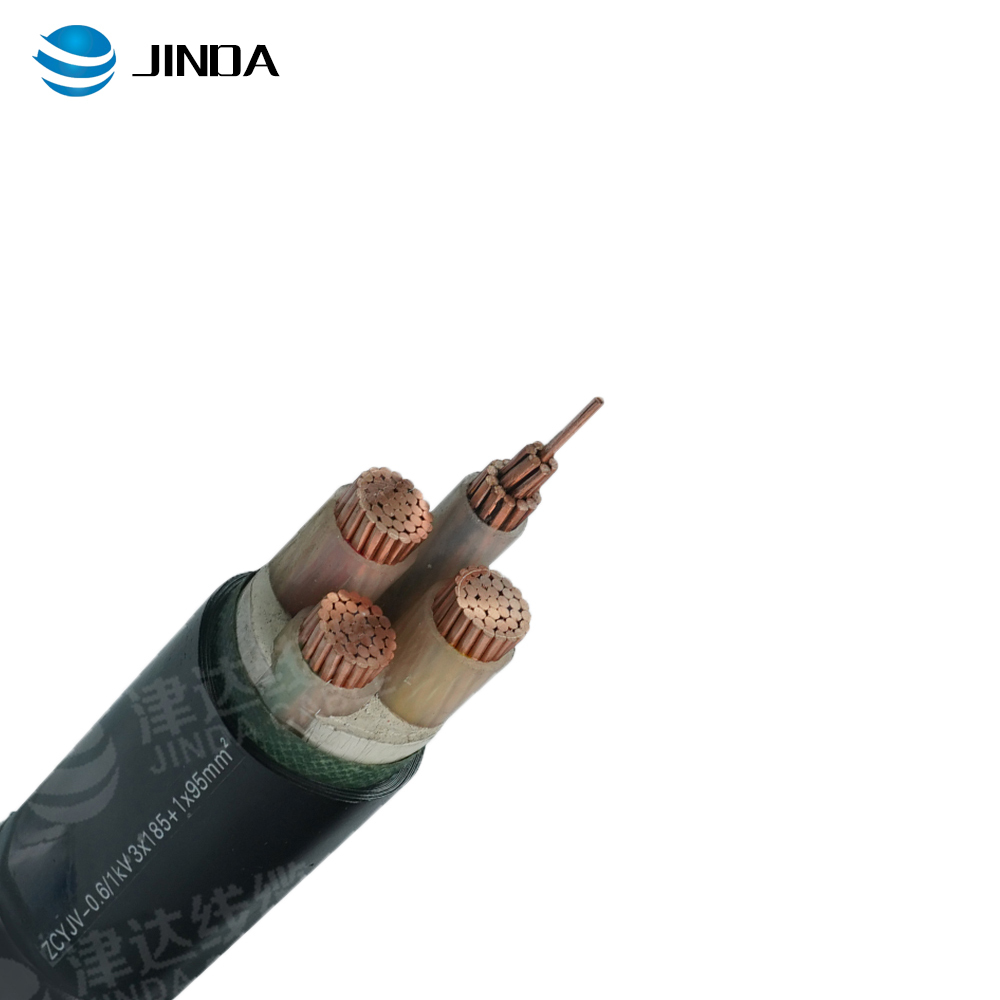

Cable structure
- Bare copper conductor, single core cross-sectional area up to 10 mm², multi-core cross-sectional area from 16 to 35 mm²
- Follow DIN VDE 0295 cl.1 or 2, BS 6360 CL.1/2, IEC 60228 CL.1/2
- Crosslinked polyethylene insulation, class 2XI1, according to DIN VDE 0207-22
- Color coding follows DIN VDE 0293-308
- Yellow-green ground cable (three cores or more)
- Halogen-free mixture filling (except single core)
- Flame retardant, halogen-free polyethylene sheath, HM2 class, according to DIN VDE 0207-24
Technical characteristics
- Operating voltage: 300/500 V
- Test voltage: 2000 V
- Minimum bending radius: 15 x øper core
- Minimum bending radius: multi-core 12 x Ø
- Operating temperature: -5º C ~ +50º C
Flame retardant according to DIN VDE 0482-266-2/HD 405.3/BS 4066 PT3/EN 50266-2/IEC 60332-3
- Low combustion corrosive gases comply with DIN VDE 0482-267/BS 6425 PT2/EN 50267-2-2/IEC 60754-2
- Halogen-free according to DIN VDE 0482-267/BS 6425 PT1/EN 50267-2-1/IEC 60754-1
- Smoke density follows DIN VDE 0482-268/HD 606/BS 7622 PT1, PT2/EN 50268-1, -2/IEC 61034-1, -2
- Insulation resistance: >100 MΩ x km
Cable parameter
|
Core number x conductor Cross area # x mm² |
Conductor type |
Nominal outside diameter mm |
Copper weight kg/km |
Cable weightkg/km |
|
1 x 1.5 |
re |
7 |
15 |
49 |
|
1 x 2.5 |
re |
7.6 |
24 |
60 |
|
1 x 4.0 |
re |
8.6 |
39 |
80 |
|
1 x 6.0 |
re |
9.9 |
58 |
111 |
|
1 x 10.0 |
re |
11.2 |
96 |
160 |
|
1 x 16.0 |
re |
11.9 |
154 |
232 |
|
2 x 1.5 |
re |
8.9 |
29 |
110 |
|
2 x 2.5 |
re |
10 |
48 |
136 |
|
2 x 4.0 |
re |
11.4 |
77 |
202 |
|
3 x 1.5 |
re |
9.4 |
43 |
130 |
|
3 x 2.5 |
re |
10.4 |
72 |
163 |
|
3 x 4.0 |
re |
11.8 |
115 |
235 |
|
3 x 6.0 |
re |
13.4 |
173 |
323 |
|
3 x 10.0 |
re |
16 |
288 |
485 |
|
3 x 16.0 |
re |
19.7 |
461 |
850 |
|
3 x 25.0 |
rm |
24.3 |
720 |
1152 |
|
3 x 35.0 |
sm |
27.2 |
1008 |
1503 |
|
4 x 1.5 |
re |
10.2 |
58 |
151 |
|
4 x 2.5 |
re |
11.3 |
96 |
200 |
|
4 x 4.0 |
re |
13.3 |
154 |
300 |
|
4 x 6.0 |
re |
14.8 |
230 |
400 |
|
4 x 10.0 |
re |
17.4 |
384 |
603 |
|
4 x 16.0 |
re |
21.6 |
615 |
940 |
|
4 x 25.0 |
rm |
27 |
960 |
1432 |
|
4 x 35.0 |
sm |
29.9 |
1344 |
1930 |
|
5 x 1.5 |
re |
10.8 |
72 |
177 |
|
5 x 2.5 |
re |
11.9 |
120 |
238 |
|
5 x 4.0 |
re |
14.8 |
192 |
345 |
|
5 x 6.0 |
re |
16 |
288 |
475 |
|
5 x 10.0 |
re |
18.9 |
480 |
720 |
|
5 x 16.0 |
re |
23.8 |
768 |
1142 |
|
5 x 25.0 |
rm |
29 |
1200 |
1800 |
|
5 x 35.0 |
rm |
32.7 |
1680 |
2490 |
|
7 x 1.5 |
re |
11.4 |
101 |
209 |
|
7 x 2.5 |
re |
13.5 |
168 |
300 |
