N2XY crosslinked polyethylene insulated power cables are designed for use in industrial facilities and urban network distribution with rated voltage 0.6/1 kV and frequency 50 Hz. Suitable for indoor fixed installation, laying in cable ducts, cable racks or fences, buried directly in gullies, or used outdoors under protection.
Application and description
N2XY crosslinked polyethylene insulated power cables are designed for use in industrial facilities and urban
network distribution with rated voltage 0.6/1 kV and frequency 50 Hz. Suitable for indoor fixed installation,
laying in cable ducts, cable racks or fences, buried directly in gullies, or used outdoors under protection.
Standards and certification
Vde-0276-603, HD 603.1, IEC 60502, VDE 0482-332-1-2, DIN EN 60332-1-2/IEC 60332-1,

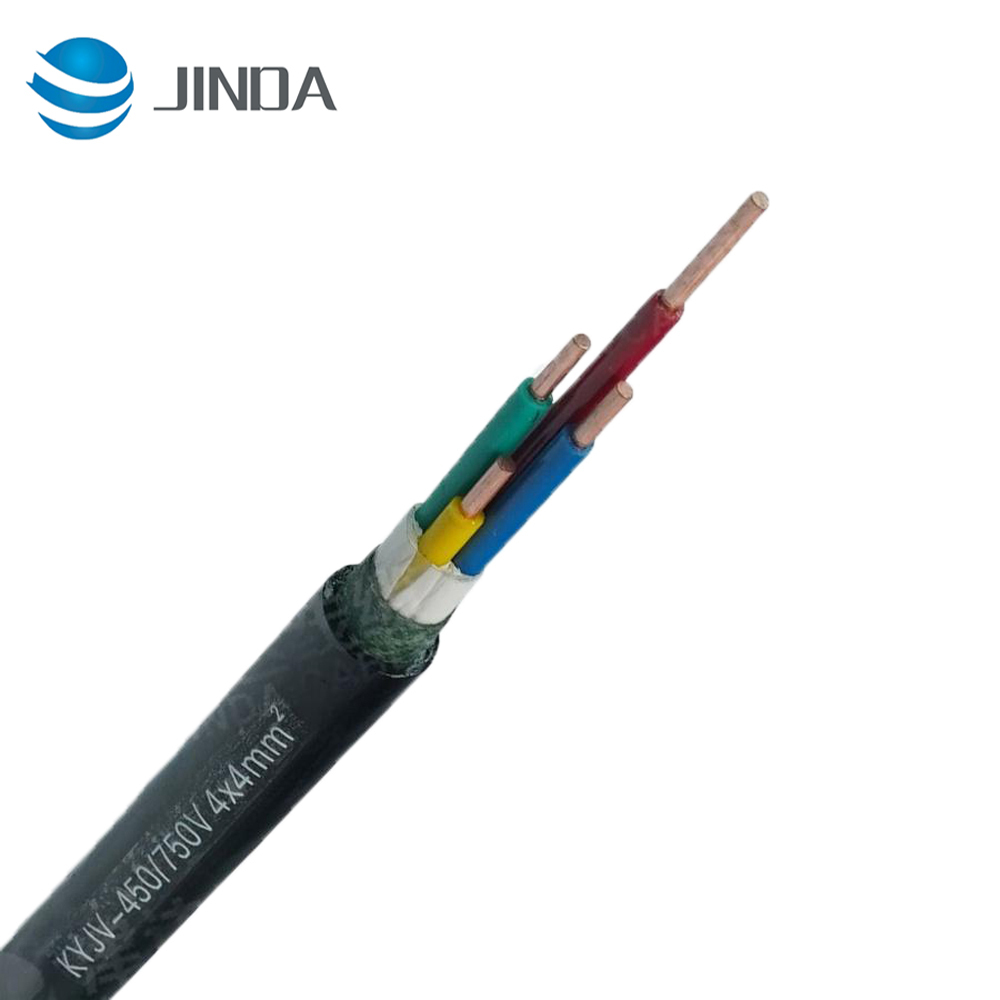

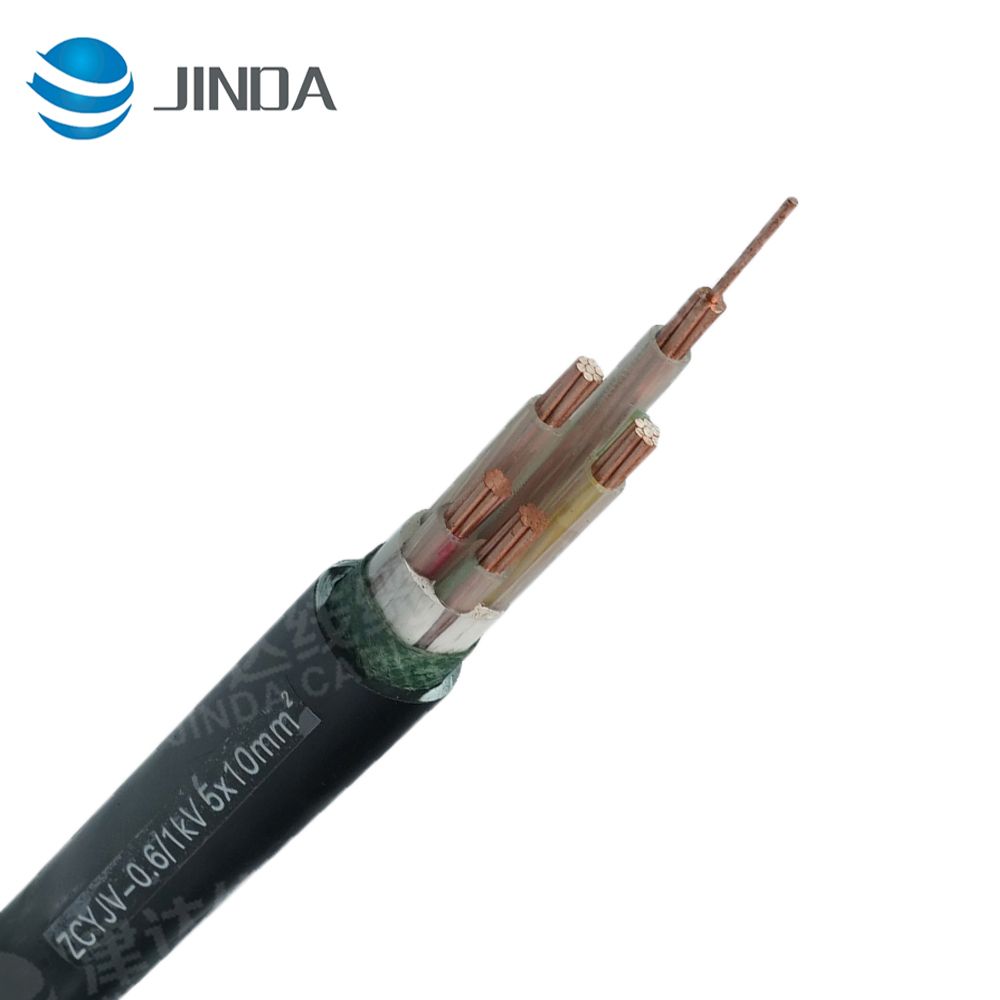

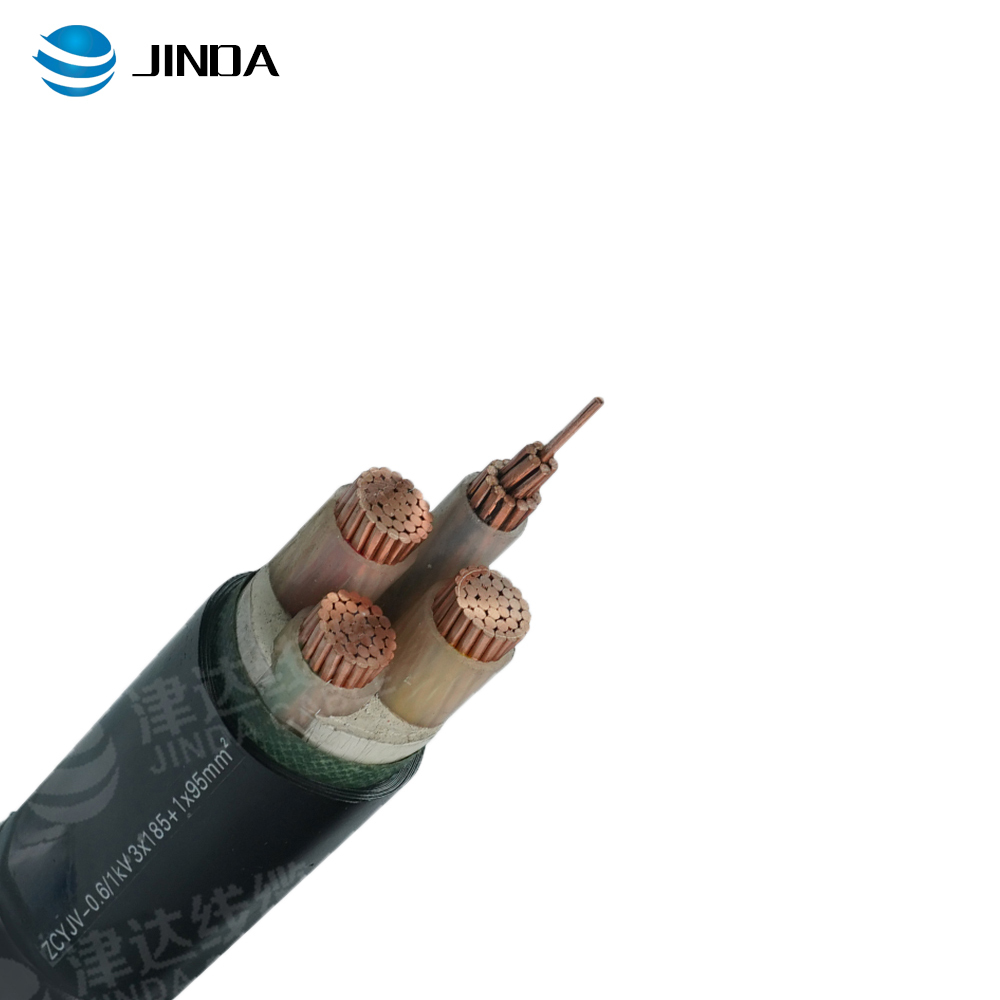

Cable structure
- Solid or multiple strands of bare copper conductor
- Follow DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2 and IEC 60228 cl.1/cl.2
- XLPE insulation DIX3 class, following VDE 0276-603/5G
- Color coding according to DIN VDE 0293(HD 308)
- PVC filling
- PVC outer sheath DMV6 follows HD 603.1
Technical characteristics
- Operating voltage: 600/1000 V
- Test voltage: 4000 V
- Minimum bending radius: 15 x Ø
- Operating temperature: -5º C ~ +70º C
- Fixed installation temperature: -30 º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: >20 MΩ x km
Cable parameter
|
Core number x conductor Cross area # x mm² |
Conductor type |
Insulation thickness mm |
Sheath thickness mm |
Nominal outside diameter mm |
Copper weight |
Cable weightkg/km |
|
1x16 |
rm |
0.7 |
1.8 |
11.0 |
144 |
230 |
|
1x25 |
rm |
0.9 |
1.8 |
12.5 |
228 |
340 |
|
1x35 |
rm |
0.9 |
1.8 |
13.5 |
317 |
445 |
|
1x50 |
rm |
1.0 |
1,8 |
15.5 |
454 |
605 |
|
1x70 |
rm |
1.1 |
1.8 |
17.0 |
656 |
800 |
|
1x95 |
rm |
1.1 |
1.8 |
19.0 |
911 |
1065 |
|
1x120 |
rm |
1.2 |
1.8 |
21.0 |
1147 |
1320 |
|
1x150 |
rm |
1.4 |
1.8 |
23.0 |
1415 |
1610 |
|
1x185 |
rm |
1.6 |
1.8 |
25.5 |
1770 |
1925 |
|
1x240 |
rm |
1.7 |
1.8 |
28.5 |
2327 |
2483 |
|
1x300 |
rm |
1.8 |
1.8 |
31.0 |
2887 |
3058 |
|
1x400 |
rm |
2.0 |
1.9 |
35.0 |
3692 |
3887 |
|
1x500 |
rm |
2.2 |
2.0 |
38.5 |
4725 |
4937 |
|
2x16 |
rm |
0.7 |
1.8 |
19.5 |
294 |
645 |
|
2x25 |
rm |
0.9 |
1.8 |
23.0 |
466 |
945 |
|
2x35 |
rm |
0.9 |
2.0 |
25.5 |
646 |
1235 |
|
2x50 |
rm |
1.0 |
2.0 |
29.0 |
924 |
1680 |
|
3x16 |
rm |
0.7 |
1.8 |
20.5 |
441 |
805 |
|
3x25 |
rm |
0.9 |
2.0 |
24.5 |
699 |
1220 |
|
3x35 |
rm |
0.9 |
2.0 |
27.0 |
969 |
1575 |
|
3x50 |
sm |
1.0 |
2.0 |
24.5 |
1387 |
1765 |
|
3x70 |
sm |
1.1 |
2.0 |
28.0 |
1897 |
2350 |
|
3x95 |
sm |
1.1 |
2.0 |
31.0 |
2631 |
3145 |
|
3x120 |
sm |
1.2 |
2.0 |
34.0 |
3324 |
3915 |
|
3x150 |
sm |
1.4 |
2.2 |
37.0 |
4084 |
4820 |
|
3x185 |
sm |
1.6 |
2.2 |
42.0 |
5123 |
6045 |
|
3x240 |
sm |
1.7 |
2.6 |
47.5 |
6733 |
7885 |
|
3x4.0+2.5 |
re |
0.7/0.7 |
1.8 |
13.5 |
135 |
328 |
|
3x6.0+4 |
re |
0.7/0.7 |
1.8 |
15.0 |
205 |
445 |
|
3x10+6 |
re |
0.7/0.7 |
1.8 |
17.0 |
338 |
611 |
|
3x16+10 |
re |
0.7/0.7 |
1.8 |
20. |
541 |
868 |
|
3x25+16 |
rm |
0.9/0.7 |
2.0 |
27.0 |
846 |
1405 |
|
3x35+16 |
rm |
0.9/0.7 |
2.0 |
29.5 |
1116 |
1765 |
|
3x50+25 |
sm/rm |
1.0/0.9 |
2.0 |
28.5 |
1620 |
2075 |
|
3x70+35 |
sm/rm |
1.1/0.9 |
2.0 |
33.0 |
2220 |
2650 |
|
3x95+50 |
sm/rm |
1.1/1.0 |
2.2 |
36.5 |
3093 |
3615 |
|
3x120+70 |
sm/rm |
1.2/1.1 |
2.2 |
39.0 |
3956 |
4690 |
|
3x150+70 |
sm/rm |
1.4/1.1 |
2.2 |
44.0 |
4716 |
5630 |
|
3x185+95 |
sm/rm |
1.6/1.1 |
2.6 |
48.5 |
6000 |
7150 |
|
3x240+120 |
sm/rm |
1.7/1.2 |
3.0 |
57.0 |
7841 |
9305 |
|
4x16 |
rm |
0.7 |
1.8 |
22.0 |
588 |
985 |
|
4x25 |
rm |
0.9 |
2.0 |
27.0 |
932 |
1500 |
|
4x35 |
rm |
0.9 |
2.0 |
29.5 |
1292 |
1955 |
|
4x50 |
sm |
1.0 |
2.0 |
28.5 |
1850 |
2320 |
|
4x70 |
sm |
1.1 |
2.0 |
33.0 |
2530 |
3100 |
|
4x95 |
sm |
1.1 |
2.2 |
36.5 |
3508 |
4180 |
|
4x120 |
sm |
1.2 |
2.2 |
39.0 |
4433 |
5200 |
|
4x150 |
sm |
1.4 |
2.2 |
44.0 |
5446 |
6410 |
|
4x185 |
sm |
1.6 |
2.6 |
48.5 |
6831 |
8050 |
